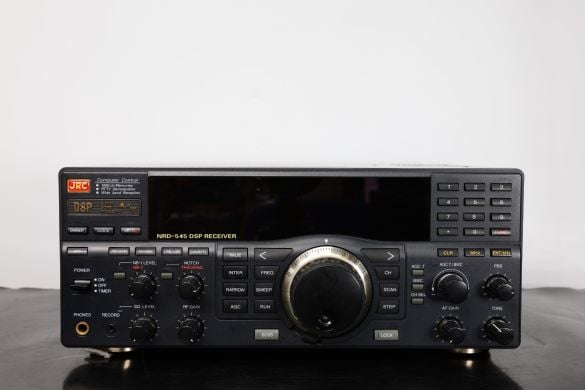

Call 0345 2300 599The product is in good condition, including AC cable and manual. No box.
SPECIFICATIONS
| GENERAL | |
| Type: | HF (VHF/UHF) receiver/scanner |
| Frequency range: | 0.1-30 MHz (0.1-2000 MHz with CHE-199 option) Cellular blocked in the US |
| Tuning steps: | 1 / 10 / 100 Hz 1 / 5 / 6.25 / 9 / 10 / 12.5 / 20 / 25 / 30 / 50 / 100 KHz |
| Frequency stability: | ±10 ppm up to 60 minutes after power on Less than ±2.5 ppm thereafter (±0.5 ppm option) |
| Mode: | AM / FM / SSB / CW / RTTY (Also WFM with CHE-199 option) |
| Channels / memory management: | 1000 regular RAM storage with lithium battery backup |
| Power supply: | Mains: 100 / 120 / 220 / 240 VAC (3-pin IEC C14 connector) or 12-16 VDC (2-pin connector) |
| Current drain / power consumption: | Less than 40 VA @ mains Less than 2.2 A @ 13.8 VDC |
| Antenna impedance / connector: | HF, 0.1-30 MHz 50 ohm / SO-239 600 ohm / Spring terminals VHF/UHF, 30-2000 MHz (With CHE-199 option) 50 ohm / N-jack |
| Dimensions (W*H*D): | 330*130*285 mm (13*5.12*11.22") |
| Weight: | 7.5 Kg (16.53 lb) |
| Other features: | DSP. RS-232C remote control. Clock/timer. Dimmer. Notch filter. Attenuator (20 dB). NB. PBS. RTTY demodulator with output to computer via RS-232C. |
| RECEIVER SECTION | |
| Receiver system: | Triple conversion superheterodyne 1st IF: 70.455 MHz 2nd IF: 455 KHz 3rd IF: 20.22 KHz |
| Sensitivity: | AM (10 dB S/N) 0.1-0.5 MHz: 15.8 uV 0.5-1.6 MHz: 6.3 uV 1.6-30 MHz: 2 uV 30-1000 MHz: 3.2 uV 1260-1300 MHz: 3.2 uV FM (12 dB SINAD) 1.6-30 MHz: 0.5 uV 30-1000 MHz: 0.8 uV 1260-1300 MHz: 0.8 uV WFM (12 dB SINAD) 30-1000 MHz: 2 uV SSB/CW/RTTY (10 dB S/N) 0.1-0.5 MHz: 5 uV 0.5-1.6 MHz: 2 uV 1.6-30 MHz: 0.32 uV |
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | Wide: 4.5 KHz (-6 dB), 8 KHz (-60 dB) Inter: 2.4 KHz (-6 dB), 5 KHz (-60 dB) Narrow: 1 KHz (-6 dB), 4 KHz (-60 dB) FM: 10 KHz (-6 dB) Bandwidths are variable, see the manual |
| Image rejection: | 70 dB |
| AF output power / speaker: | 1 W at 10% distortion / 4 ohm |
| External speaker connector: | Phono (RCA) |
