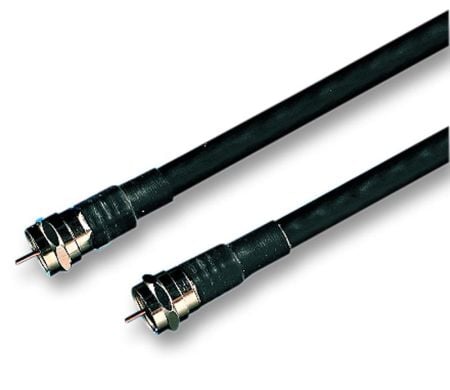

CT100 75 Ohm Coaxial Cable Patch Leads with F Plugs
SKU Part Number: VDC-CT100-FF
A high-quality 75 ohm CT100 coaxial cable assembly fitted with F Male connectors at both ends, ideal for satellite, LNB, QO-100, television, and...
Read More
As low as £10.96
Availability: In stock
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

A high-quality 75 ohm CT100 coaxial cable assembly fitted with F Male connectors at both ends, ideal for satellite, LNB, QO-100, television, and other 75 ohm RF applications.

The cable uses a 1.00mm bare copper centre conductor, gas-injected polyethylene dielectric, copper tape screening, and bare copper braid for good RF performance and screening.

Available in a choice of lengths.

Key Features

  • 75 ohm CT100 coaxial cable
  • F Male connector at each end
  • 1.00mm bare copper centre conductor
  • Gas-injected PE dielectric
  • 100% copper tape screen
  • Bare copper braided screen
  • 80% velocity factor
  • Suitable for satellite and LNB installations
  • Useful for QO-100 receive systems
  • Low-loss performance up to 2150MHz

Typical Uses

  • Satellite dish to receiver connections
  • LNB feeder cables
  • QO-100 receive installations
  • Satellite IF connections
  • Television and distribution systems
  • Other 75 ohm RF equipment using F connectors

Specifications

Specification Details
Configurable SKU VDC-CT100-FF
Cable type CT100
Impedance 75 ohms
Connectors F Male to F Male
Centre conductor Bare copper, 1 x 1.00mm
Dielectric Gas-injected PE
Dielectric diameter Approx. 4.65mm
Primary screening 100% copper tape
Secondary screening 56% bare copper braid
Outer diameter Approx. 6.70mm
Velocity ratio 80%
Nominal capacitance Less than 58pF/m ±10%
Rated temperature 80°C
Rated voltage 300V
Conductor DC resistance 23.7 ohms/km
Outer conductor resistance 15 ohms/km
Insulation resistance Greater than 500MΩ/km

Attenuation

Frequency Attenuation @ 20°C
5MHz 1.6dB/100m
50MHz 4.6dB/100m
100MHz 6.5dB/100m
200MHz 9.5dB/100m
460MHz 15.0dB/100m
860MHz 19.5dB/100m
1000MHz 21.5dB/100m
1750MHz 29.0dB/100m
2150MHz 32.5dB/100m

Return Loss

Frequency Range Return Loss
5-30MHz >23dB
30-470MHz >23dB
470-862MHz >20dB
862-2150MHz >18dB

Screening Attenuation

Frequency Range Screening Attenuation
30-470MHz >75dB
470-862MHz >75dB
862-2150MHz >65dB

Important Note

This is a 75 ohm cable, making it suitable for satellite, LNB, television, and other equipment designed for 75 ohm systems.

It should not be treated as a direct replacement for conventional 50 ohm amateur radio coaxial cable unless the intended equipment specifically requires a 75 ohm feedline.
