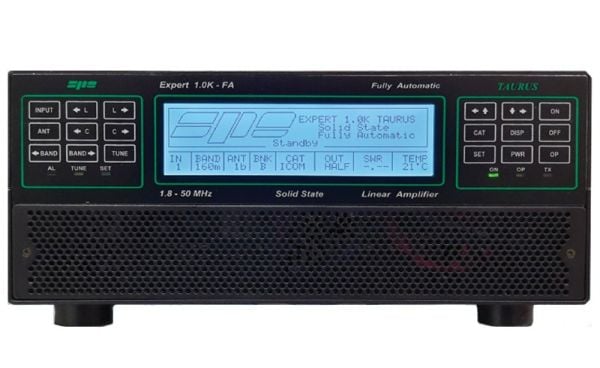

SPE solid-state 1.0 K-FA Taurus linear amplifier with ATU
SKU Part Number:
1KFA-ATU-TAURUS
This state-of-the-art solid-state linear amplifier is at the forefront of RF engineering, designed to offer unrivalled performance, convenience, and...
Read More
Read More
£3,199.00
Pre order Due Early October 26
Seen this product cheaper elsewhere?
Call 0345 2300 599
This state-of-the-art solid-state linear amplifier is at the forefront of RF engineering, designed to offer unrivalled performance, convenience, and reliability. Operating across a broad frequency range (1.8 MHz to 54 MHz, including WARC bands and 60 m where permitted), it provides a solid 1kW of output with exceptional linearity, efficiency, and robustness. Integrated with a built-in power supply and a highly capable automatic antenna tuner, it is remarkably compact and lightweight for its class, measuring just H12, W28, D36 cm and weighing approximately 9.8 kg.
Two powerful CPUs manage over 30,000 lines of software code, delivering an unparalleled suite of automated features. The amplifier seamlessly integrates with popular transceiver brands—ICOM, YAESU, KENWOOD, TEN-TEC, FLEX-RADIO, ELECRAFT—and even home-made rigs, eliminating the need for manual band switching, tuning, and antenna selection. Simply turn the frequency knob on your transceiver, and let the amplifier handle the rest.
Beyond user-friendly operation, this amplifier is built for durability and safety. It employs advanced hardware and software protection mechanisms, constantly monitoring parameters like SWR, temperature, voltage, and current. Cooling is managed intelligently with linear fan speed control, ensuring quiet operation even under heavy load. There is no warm-up time, and the unit is always ready for instant performance. Featuring SO2R capability, two RF inputs, and a highly accurate, fully automatic internal tuner capable of matching up to 5:1 SWR (on HF) and 2.5:1 (on 6 m), this amplifier offers unparalleled versatility. Its switching power supply with PFC accepts input voltages from 100 to 255 VAC, enabling use in various regions without performance compromise.
Coupled with a detailed LCD display for real-time monitoring, easy software updates via USB/RS232 ports, and a durable carry-bag for portable operations like Field Days or DXpeditions, this amplifier is the ultimate solution for both serious HF operators and those seeking top-tier convenience.
What Sets It Apart from the Standard 1k-FA Model
The key difference in this special version lies in its internal power devices. Unlike the standard 1.5k-FA model, this variant uses one LDMOS device rated for 1.8 kW dissipation. This enhancement not only improves the overall robustness and efficiency of the amplifier but also ensures even greater linearity under demanding operating conditions.
View Brochure HERE
- MAIN FEATURES
• One LDMOS (1.8 KW dissipation) for the highest reliability and efficiency.
• Powerful: solid 1 KW on all bands and all modes.
• ATU Built-In: bypassable per antenna and band. Matching up-to 5:1.
• Very Light: 9.8 kg (21.5 lbs).
• Very Small: h12, w 28, d 36 cm (4.72”x11.02”x14.17”) connectors included.
•Wide Frequency Coverage: 1.8 MHz to 54 MHz, including WARCs.
• Where permitted: 60 m. full power.
• Internal Switching Power Supply with PFC (100-255 VAC).
• Manages 4 antennas automatically.
• Automatically switches between 2 transceivers.
• SO2R operation.
• Predistortion Output - 60 dB
• Manages SPE AM-01 Remote Antenna Matrix.
• Can manage an external set of Band Pass Filters.
• Up to 2 antennas can be selected for every band.
• An additional receiving antenna can be selected.
• Drives directly up to 4 dynamic antennas (SteppIR, Ultrabeam) for the easiest layout.
•No relay contacts are switched when current is flowing due to special software, no hot switching.
• QSK.
• Fully removable.
•Full output with QRP tranceivers (optional).
• Remote control and all software upgrades fully available on SPE website.
• USB and RS 232 ports.
• 2 Selectable Power Output: FULL (1000 W), HALF (500 W).
• Very clean and low distortion signal.
• Both inputs are always perfectly matched.
• Quiet Operation: Special fans are controlled by the power supply and power amplifier temperatures.
• Fully protected, including the first spike of the transceiver.
• Two very fast CPUs.
• CAT and band data compatible with all rigs on the market, allowing automatic control of antennas,
bands, ATU matchings.
• Complete with a heavy-duty carrying bag allowing carry-on to aeroplanes.
• Certifications: CE, FCC, RCM (C-Tick). - Specifications are subject to change without notice.
