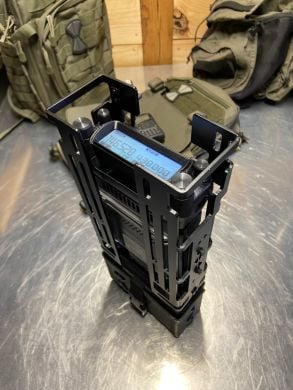

The Armoloq TPA-150 is a protective mounting platform designed for the Yaesu FTM-150 and FTM-310 mobile transceivers.
Its two-piece wrap-around design helps protect both the radio body and control head while retaining access to the radio controls.
Because of the oversized control head, the TPA-150 uses a pair of specially machined SLO aluminium spacers between the radio and mounting platform. These spacers are included and are required for correct installation.
Our package also includes the PL-TNC/RA3 RF PnP Package, providing the coaxial lead, bulkhead connector, and adaptor required for a neat RF connection through the mounting platform.
Compatible Radios
- Yaesu FTM-150R/E
- Yaesu FTM-310DR/DE
Package Includes
- 1 x Armoloq TPA-150 protective mounting platform
- 2 x TPA SLO aluminium spacers
- 8 x M2.6-0.45 x 8mm socket head screws
- 4 x M4-0.7 x 10mm socket head screws
- 1 x PL-259 Right-Angle to TNC Male RG58C/U coaxial lead, 1ft
- 1 x TNC Female bulkhead connector
- 1 x TNC Male to BNC Female adaptor
Key Features
- Protective mounting platform for the FTM-150 and FTM-310
- Two-piece wrap-around design
- Protects the radio body and control head
- Retains access to radio controls
- Supplied with the required SLO offset spacers
- Includes PL-TNC/RA3 RF PnP connection package
- 5052 aluminium TPA construction
- Matte black powder-coated finish
- 6061 aluminium machined spacers
- Compatible with the optional MBS-1280 battery system
RF PnP Package
The included PL-TNC/RA3 RF PnP Package provides a convenient RF connection through the Armoloq platform and includes:
- 1ft RG58C/U coaxial cable with PL-259 Right-Angle to TNC Male
- TNC Female bulkhead connector
- TNC Male to BNC Female adaptor
This provides a neat and accessible external RF connection when the radio is installed inside the protective frame.
Specifications
| Specification | Details |
|---|---|
| Brand | Armoloq |
| Model | TPA-150 |
| Compatible radios | Yaesu FTM-150, FTM-310 |
| TPA material | 5052 aluminium, 1/8in |
| TPA finish | Matte black powder coat |
| Spacer material | 6061 aluminium |
| Spacer finish | Bare machined finish |
| Length | 10.500in |
| Length with MBS-1280 | 15.500in |
| Radio body depth | 2.750in |
| Control head depth | 3.125in |
| Overall width | 7.000in |
| TPA + spacer weight | Approx. 1.020lb |
| TPA + radio + MBS-1280 + 10Ah LiFePO4 battery | Approx. 7.750lb |
Important Note
The supplied SLO spacers are required when fitting the TPA-150. The mounting platform should not be installed directly against the radio without them.
The supplied M2.6-0.45 x 8mm screws must not be used without the SLO spacers, as they are specifically sized for this installation arrangement.
This package includes the TPA-150 mounting platform, SLO spacers, mounting hardware, and PL-TNC/RA3 RF PnP package.
Radio, MBS-1280, battery, and other accessories are not included unless specifically stated.
Installation
- Fit the supplied SLO aluminium spacers using the M2.6-0.45 x 8mm socket head screws.
- Each spacer is stamped L or R and should be installed with the letter facing the radio body, with the control panel facing the operator.
- Attach the TPA protective frame to the spacers using the supplied M4-0.7 x 10mm socket head screws.
The supplied screws are specifically sized to avoid damaging the radio internals.
 |
|
|
|
