Sierra Radio Systems SIR-331 Four Port HF and 6m Coax Relay Module
SKU Part Number: SIR-331
The Sierra Radio Systems SIR-331 is a four port remote coax relay module for the Sierra Station Controller range. Also known as the CX-1, this...
Read More
£228.95
Availability: In stock
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

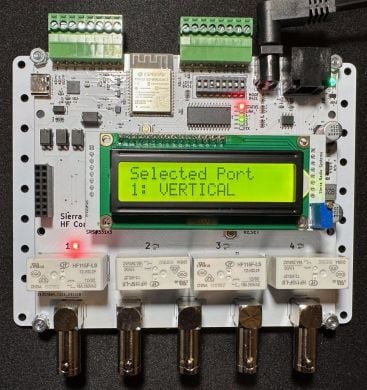

The Sierra Radio Systems SIR-331 is a four port remote coax relay module for the Sierra Station Controller range.

Also known as the CX-1, this module can be used to switch one radio between four antennas, or one antenna between four radios. It is intended for HF and 6m operation, covering 1-60MHz, and provides a flexible RF switching option for remote HF stations, contest stations, repeater sites, receive systems, and automated shack installations.

The SIR-331 uses latching relays, so the selected port remains in its last state even if power is removed from the module. It also uses break-before-make switching, releasing the current connection before making the new one, while the built-in firmware prevents two relays from being active at the same time.

The module can be controlled through the Sierra DCN, or Device Control Network, and also provides momentary pull-to-ground inputs for external pushbutton or electronic port selection.

Key Features

  • Four port HF and 6m coax relay module
  • Also known as the CX-1
  • Switches 1 radio to 4 antennas or 1 antenna to 4 radios
  • Intended frequency range of 1-60MHz
  • Suitable for 160m through 6m operation
  • Maximum power handling of 100W
  • Insertion loss less than 0.05dB on HF
  • Port isolation typically between 53dB and 65dB across the HF band
  • BNC RF connectors
  • Latching relay design
  • Retains last selected position if power is removed
  • Break-before-make switching
  • Firmware prevents multiple relays being active at the same time
  • Control over Sierra DCN
  • Manual control possible using external momentary pushbuttons
  • Multiple modules can be used together for larger switching arrangements

Typical Uses

  • Switching one HF radio between up to four antennas
  • Switching one antenna between up to four radios
  • Remote HF station antenna selection
  • Contest station RF switching
  • Automated shack antenna switching
  • Receive antenna selection
  • Repeater or remote site RF path switching
  • Expanding a Sierra Station Controller installation

Station Controller System Role

The SIR-331 adds RF coax switching to a Sierra Station Controller system.

It connects to the Sierra DCN, using RJ45 style connections and network-style patch cables. The DCN connection is used for module communication and system power distribution between compatible Sierra modules.

Although the connectors are RJ45 style, the DCN ports are not standard Ethernet ports and should only be connected to compatible Sierra Station Controller modules and accessories.

Switching Arrangement

Mode Description
1 radio to 4 antennas Select one of up to four connected antennas for a single radio
1 antenna to 4 radios Select one of up to four connected radios for a single antenna
Disconnected state All relays may be placed into a disconnected state
Expanded switching Multiple SIR-331 modules may be used together for larger switching systems

Specifications

Specification Details
Brand Sierra Radio Systems
Model SIR-331
Product type Four port HF and 6m coax relay module
Alternative name CX-1
Switching format Single pole, four position
RF ports 4
Frequency range 1-60MHz
Typical coverage 160m to 6m
Maximum power 100W
Insertion loss Less than 0.05dB on HF
Port isolation 53-65dB across the HF band
RF connector type BNC
Relay type Latching
Control method Sierra DCN or external momentary pushbuttons
System type Sierra Station Controller

Important Note

This listing is for the SIR-331 Four Port HF and 6m Coax Relay Module only.

SIR-310 host adapter, installation kit, DCN hub, coaxial cables, antennas, radios, power supply, pushbuttons, control wiring, and other accessories are not included unless stated otherwise.

The SIR-331 is rated for a maximum of 100W. Please ensure it is suitable for your station power level before installation.

The Sierra DCN uses RJ45 connectors and network-style cables, but DCN connections are not standard Ethernet connections. Do not connect DCN ports directly to normal Ethernet network equipment.

A suitable 10-18V DC supply is required when the module is not being powered through a Sierra DCN connection from the SIR-310 host adaptor.
