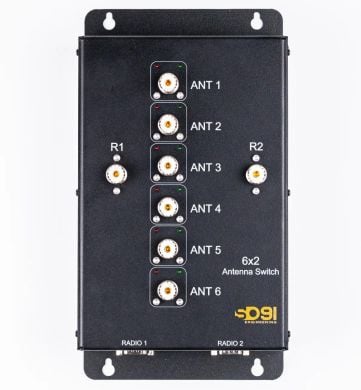

The SO9I 6x2 Switch is designed for stations that need to share up to 6 antennas between 2 radios.
It is ideal for SO2R operation, multi-operator contest stations, and any shack where two radios are used interchangeably with several antennas. Instead of manually moving coaxial cables around, the 6x2 Switch allows each radio to select from the available antenna ports remotely using a separate Controller 6x2.
The switch uses two-colour LED indication, making it immediately clear which antenna is being used by which radio. Inside the unit, a mechanical lock physically prevents both radios from selecting the same antenna at the same time. This hardware safeguard helps protect your equipment by preventing accidental shared antenna selection.
Key Features
- 6x2 remote antenna switch
- Allows 2 independent radios to share up to 6 antennas
- Ideal for SO2R and multi-operator station setups
- Useful for any station with two radios and multiple antennas
- Two-colour LEDs show which antenna is in use by which radio
- Mechanical lock prevents both radios selecting the same antenna at once
- Hardware safeguard helps protect radio final stages
- Unused antennas are automatically grounded
- Reinforced copper layer on PCB for improved reliability
- Designed for high-power operation up to 4kW
- Very low insertion loss
- Excellent isolation between R1 and R2 ports
- Elegant black powder-coated housing with high-quality labelling
- Available with UHF connectors
- Works with separate Controller 6x2 for manual antenna selection
How It Works
The SO9I 6x2 Switch allows two radios to share a bank of up to six antennas.
Each radio can select an antenna independently, while the switch’s internal mechanical locking system prevents both radios from being connected to the same antenna at the same time. This is handled in hardware, rather than relying on software, helping to keep the system robust and safe.
Two-Colour LED Indication
The switch features two-colour LED signalling, allowing you to see at a glance which antenna is currently selected and which radio is using it.
This is especially useful in contest, SO2R, and multi-operator environments where clear visual confirmation helps avoid mistakes.
Antenna Grounding
Unused antenna ports are automatically grounded. This helps reduce static build-up and provides an additional layer of protection for your station installation.
As with all antenna systems, this should not be considered a replacement for a properly designed grounding and lightning protection system.
Technical Data
| Specification | Details |
|---|---|
| Product | SO9I 6x2 Switch |
| Switch type | 6x2 remote antenna switch |
| Antenna ports | Up to 6 |
| Radio ports | 2 |
| Frequency range | 1-30MHz |
| Maximum power | 4kW |
| Impedance | 50 ohms |
| Isolation between R1 and R2 ports | >80dB |
| Insertion loss | <0.1dB |
| Maximum SWR | 1:1.12 |
| Power supply | 12V DC |
| Connector option | UHF |
| Control method | Separate Controller 6x2 |
| Port indication | Two-colour LEDs |
| Antenna protection | Unused antennas automatically grounded |
| Housing finish | Black powder coat |
| Dimensions | 300 x 165 x 62mm (11.81 x 6.50 x 2.44in) |
Important Note
This listing is for the SO9I 6x2 Switch only. Controller, coaxial cables, control cable, antennas, grounding accessories, and other station equipment are not included unless stated otherwise.
For operation, a separate Controller 6x2 is required.
