Armoloq TPA Package for FT-857 with RF Package PL-TNC/RA3

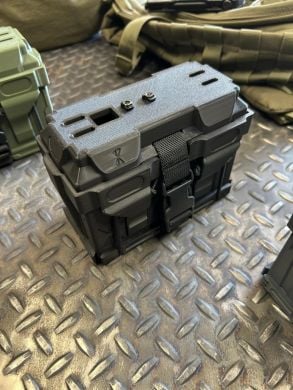

The Armoloq MBS-1280FDM is a lower-cost version of Armoloq’s Manpack Battery System, designed to provide a compact, self-contained battery solution for compatible Armoloq TPA protective frames.
Manufactured in-house in Tennessee using a high-quality FDM production process, the MBS-1280FDM has been redesigned specifically for this manufacturing method while providing a comparable level of battery protection to the original Kydex MBS-1280.
The system allows a compatible UB1280-size battery to be mounted directly to the rear of an Armoloq TPA frame. The battery compartment protects the battery while also providing a stable base that allows the complete radio system to stand upright during portable and field operation.
Available Colours
- Black
- Olive Drab (OD) Green
- Coyote Tan
- Charcoal Grey
- Flat Desert Earth (FDE)
Key Features
- Manpack battery system for compatible Armoloq TPA frames
- In-house FDM manufactured construction
- Lower-cost alternative to the original Kydex MBS-1280
- Designed around UB1280-size batteries
- Provides protection for the installed battery
- Allows the battery to mount directly to the TPA frame
- Creates a stable platform for standing the radio upright
- Ideal for portable, field, emergency, and manpack radio installations
- Available in five colours
- Suitable for use with the appropriate MP-O spacers where required
Included Components
- MBS-1280FDM Battery Case
- Strap with Quick Release Buckle
- Shock Cord Retention Straps
- M-APP Modular Anderson Powerpole Mount
- Short Spade Connector to Powerpole Fly Lead
- Mounting Hardware
Battery Compatibility
The battery must fit within the following maximum physical dimensions:
| Dimension | Maximum Size |
|---|---|
| Length | 151mm / 5.940in |
| Depth | 65mm / 2.550in |
| Height | 96mm / 3.780in |
A suitable UB1280-size battery should be checked against these physical dimensions before installation.
TPA Spacer Requirements
Some Armoloq TPA installations require MP-O spacers between the TPA frame and MBS-1280FDM.
| Radio / TPA Application | Spacer Requirement |
|---|---|
| Yaesu FT-817 / FT-818 | None |
| Anytone AT-D578 Series | None |
| Xiegu G90 | None |
| Wouxun KG-1000G | None |
| Wouxun KG-UV950P | None |
| Yaesu FT-857 | MP-O 3/16in |
| Yaesu FT-891 | MP-O 3/16in |
| Yaesu FTM-150 | MP-O 3/16in |
| Yaesu FTM-310 | MP-O 3/16in |
| Icom IC-2730 | MP-O 3/16in |
| Yaesu FT-2980 | MP-O 1/2in |
| Yaesu FTM-500 | MP-O 1/2in |
| Yaesu FTM-510 | MP-O 1/2in |
Always use the correct spacer configuration for the relevant TPA frame.
Important Compatibility Note
The MBS-1280FDM is not cross-compatible with components from the original Kydex MBS-1280.
The dimensions of both the battery compartment and mounting lid have been modified for the FDM version. MBS-1280FDM lids and compartments should therefore only be used with matching MBS-1280FDM components.
Important Note
This listing is for the Armoloq MBS-1280FDM Manpack Battery System only.
Battery, radio, TPA protective frame, MP-O spacers, and other accessories are not included unless specifically stated.
Always check the physical dimensions of your chosen battery before installation.
